TRIULZI machines differ on the market as they are the only ones to use AISI 304 stainless steel for the ENTIRE structural frame of the machine. True quality and durability over time. Available on request in INOX AISI 316.

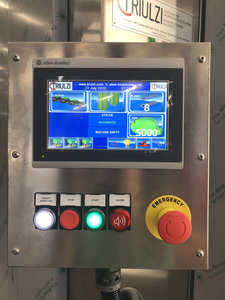

Each Triulzi machine is famous for its ease of use. This peculiarity is given by the HMI and PLC designed to give the operator a user-friendly experience and allow the interfacing with upstream and downstream machines.

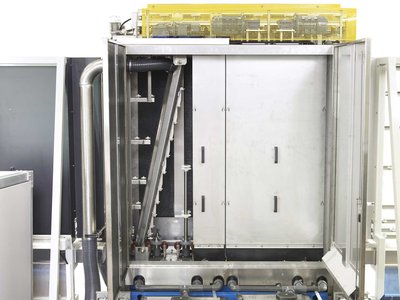

A powerful system that allows to put in "energy saving mode" the machine, thanks to a controlled temporary stop of fan (drying section) and washing system. The system automatically restarts when the next glass sheet is detected by sensors on the inlet conveyor.
| Property | Value |
|---|---|
| Working Height | from 1600 mm up to 2000 mm [=62.99 up to 78.74 in] |
| Glass Thickness | from 2 mm up to 50 mm (with safety device) [=0.079 up to 1.97 in] |
| Minimum Glass | 300x150 mm [= 11.81x 5.91 in] |
| glass thickness detection | automatic detection with sensors - the machine extends itself automatically through specific motorization |
| Overall Dimension | 4920 mm (L) ; 1900 mm (W) ; 3100 mm (H) |
| Installed Power | 16 kW |
| Height working plan | 750 mm (+30-20mm) [= 29.53in (+1.18 - 0.79 in)] |
| Working Speed | from 2 up to 7 m/min |
| Voltage - Frequency - Phases | 380 V - 50 Hz - 3 Ph |
| Auxiliary tension | 24 V |
