Products / VERTICAL WASHING MACHINES / VERTICAL OPEN-TOP VOT.SP12

Model: VERTICAL OPEN-TOP VOT.SP12

1 2 3
- Discover More →

Equipment

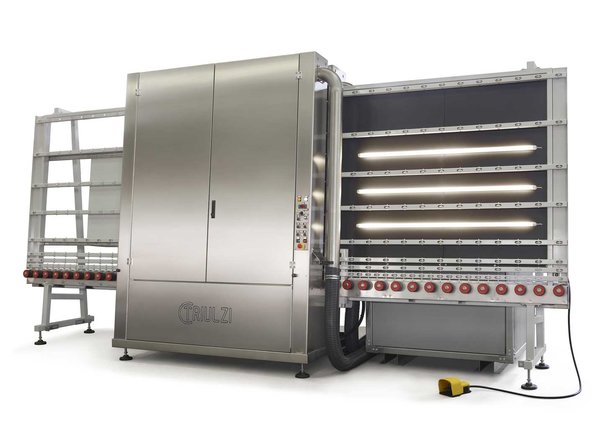

OPEN TOP VERTICAL WASHING MACHINE - FOR GLASS UP TO MAXIMUM THICKNESS 12mm

STAINLESS STEEL HIGH QUALITY MACHINE

One of the longest-lived washing machines in the TRIULZI range, the OPEN TOP Series.

This model in particular has been designed to wash and dry glass sheets with a maximum thickness of up to 12 mm.

All open top machines are suitable for working "stand-alone" in small glassworks.

ALL IN ONE SOLUTION

Key Points

GLASS PRESSING AND TOWING SYSTEM

Compared to its big sister OPEN TOP.SP50 which washes and dries glass up to 50mm thick, this model is designed for thinner glass sheets. In fact, thanks to a mechanical pressure system through special tires, the glass moves forward driven by this system.

Technical Specifications

Property Value
Working Height from 1600 mm up to 2000 mm [=62.99 up to 78.74 in]
Glass Thickness from 2 mm up to 12 mm [= 0.079 up to 0.47 in]
Minimum Glass 300x150 mm [= 11.81x 5.91 in]
glass thickness detection By Mechanical Pressure System
Overall Dimension 4920 mm (L) - 1900 mm (W) - 2900 mm (H) [= 193.70 x 74.80 x 114.17 in]
Installed Power 11 kW
Height working plan 750 mm (+30-20mm) [= 29.53in (+1.18 - 0.79 in)]
Working speed from 2 up to 7 m/min
Voltage - Frequency - Phases 380 V - 50 Hz - 3 Ph
Auxiliary tension 24 V
