Equipment

AUTOMATED LINE FOR LAMINATING GLASS

Special line for the production of laminated glass. The whole machines can be in-line, U-shaped and further customized according to the specific needs of the customer. Managed by PLC with touch screen, diagnostics and remote assistance, the line includes OVEN PRESS area, air transfer with suction cups and automatic plate preparation and coupling area.

Oven press section:
• opening 500 mm for inspection • infrared ray lamps • air convection system for Low-E-glass treatment • pressure speed adjustable from 0,5 to 8 m/min in function of the glass thickness to laminate • suitable to laminate big thickness tempered glass • possibility to laminate glass sheet with policarbonate sheet • possibility to laminate two pieces in parallel

Overhead assembly unit:
• suction cups made of special material against marks and suitable for Low-E glass • precision of assembly of laminate • steady frame suitable to pick up thick glass sheets

Laminating Line:
• automatic glass sheet preparation and assembling section • possibility to transfer small glass sheets with irregular shape with manual assembling • possibility to transfer 2 glass sheets in parallel with automatic assembling • possibility to transfer big glass sheets with assembling in automatic

"U" LAYOUT

18 elements constitute this automatic line for the production of laminated glass. To see more details of each section, you can download the dedicated catalog on the DOWNLOAD page.

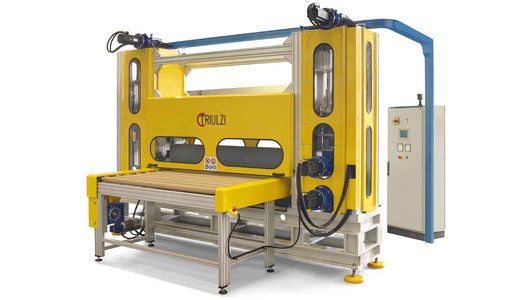

HIGH PRECISION PRESS

High precision press for laminated glass, standard and irregular shapes

"IN-LINE" LAYOUT

Aligned plant for glass sheet of big sizes

Technical Specifications

Property Value
Plant Working width from 1600 up to 3210 mm
Easy inspection through automatic opening Automatic opening up to 500mm
Glass Width Max from 1600 up to 3210 mm
Glass Width Min 250 mm
Glass Length Max from 3210 up to 6000 mm
Glass Length Min 600 mm
Raw Glass Thickness 2 mm
Laminated Glass Thickness 80 mm
OPTIONAL ON REQUEST
